Confetti Air Cannon Operator Interface

“Girls,” the first production of 2019 -2020 Yale Repertory Theater Season, required an interface to safely control four air confetti cannons located in the FOH.

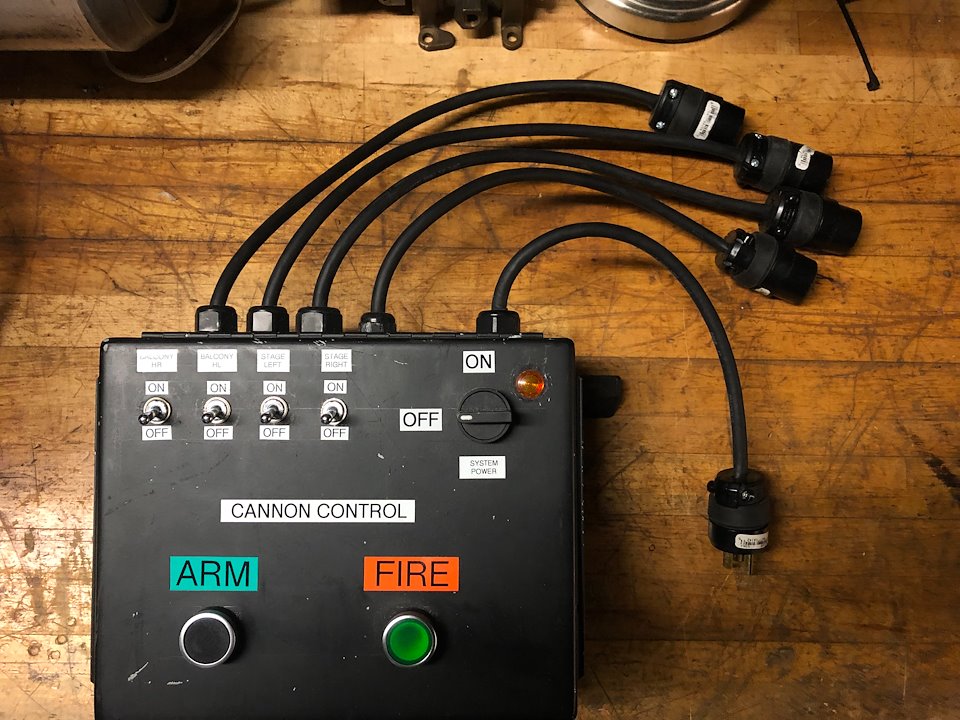

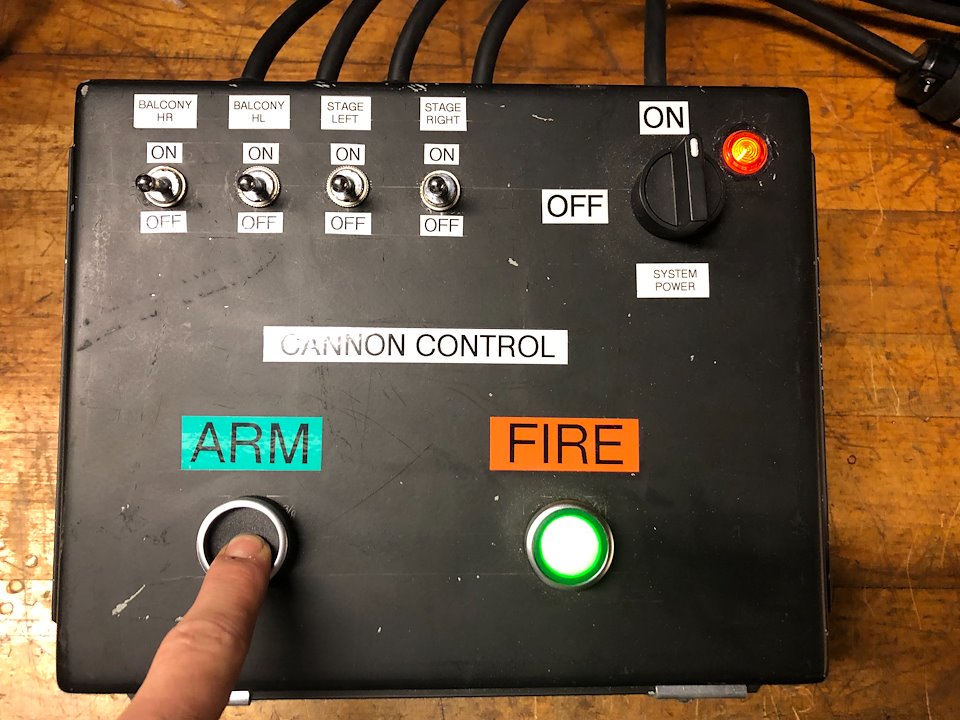

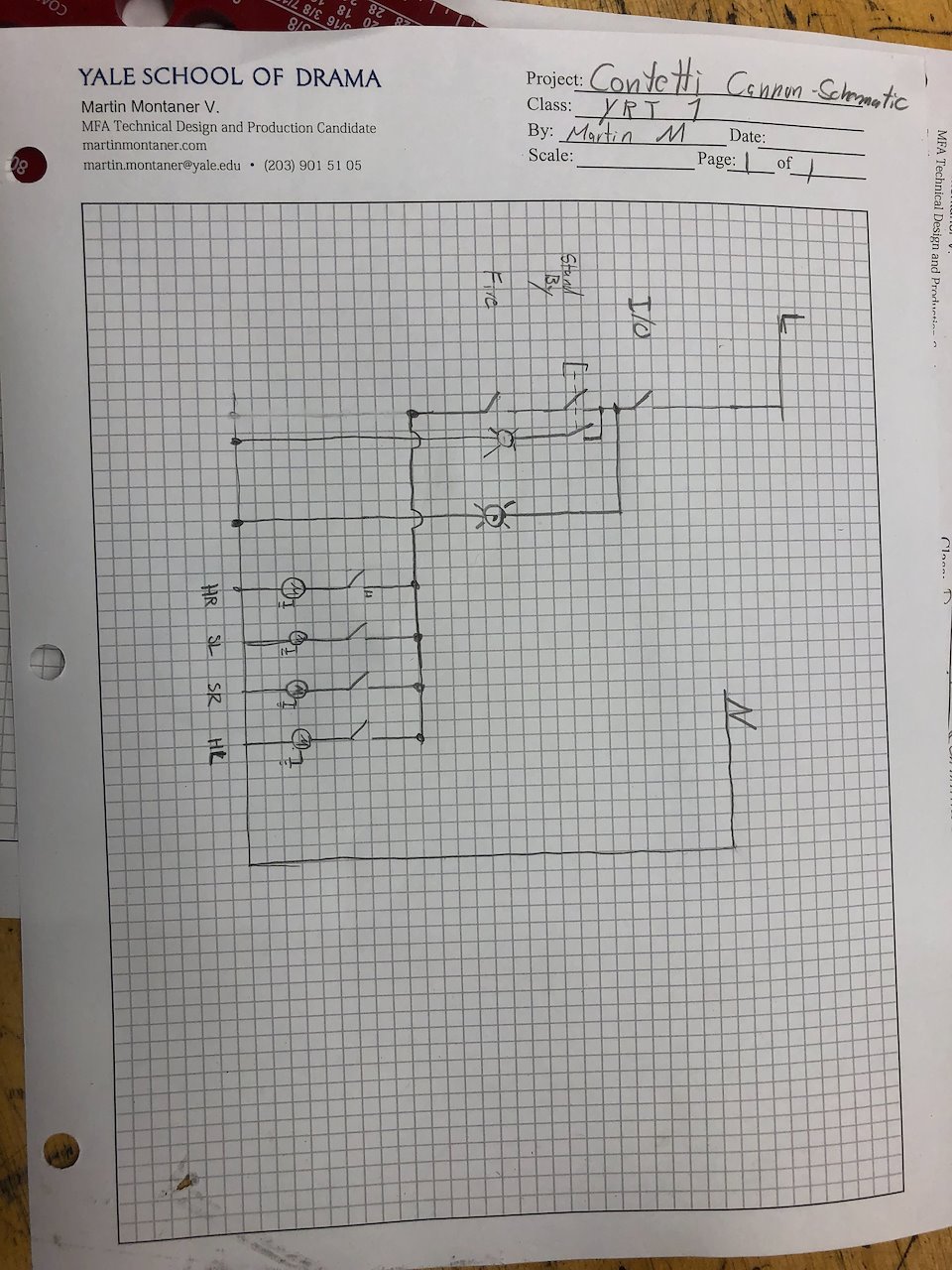

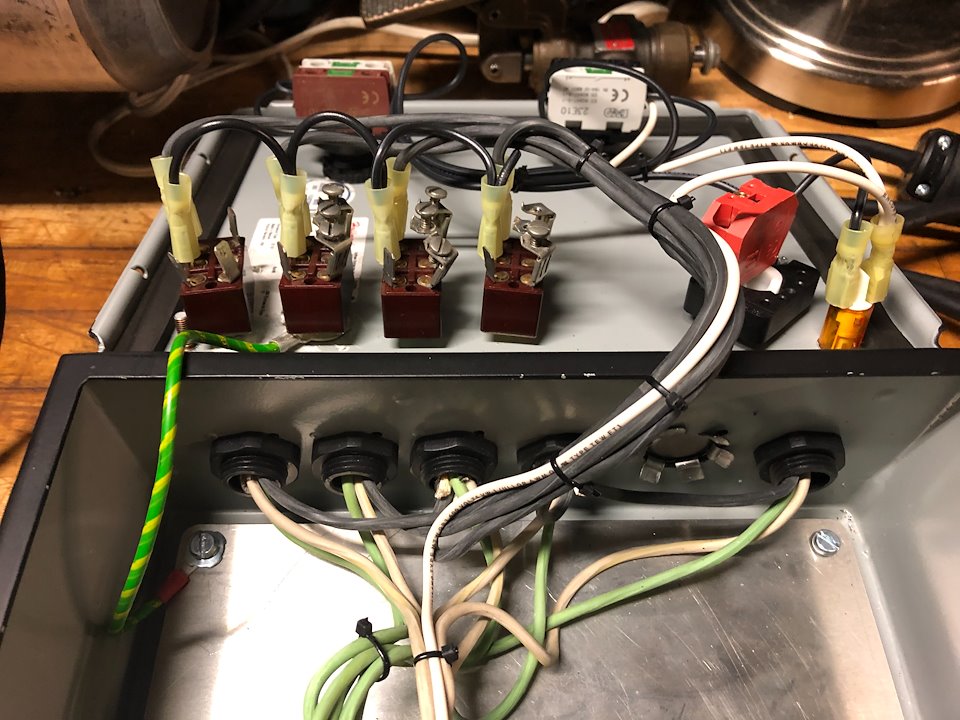

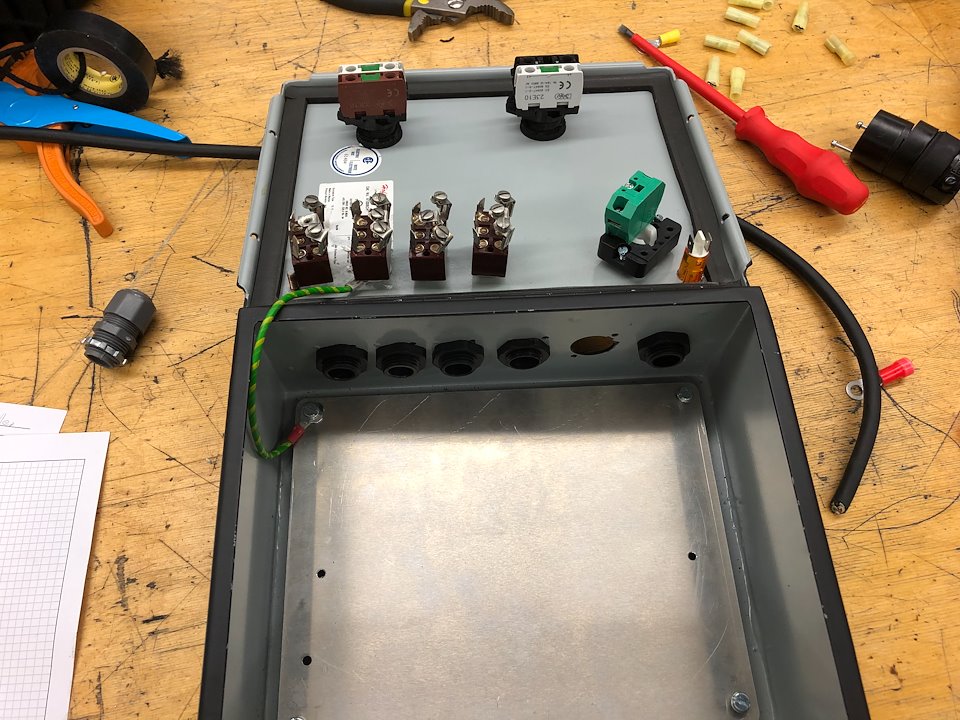

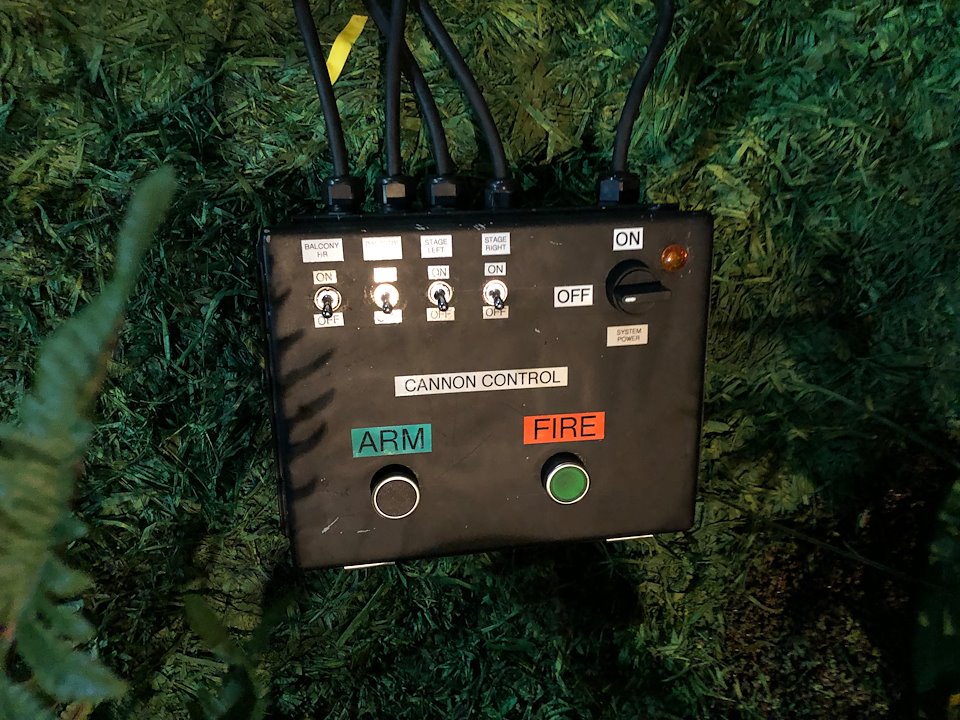

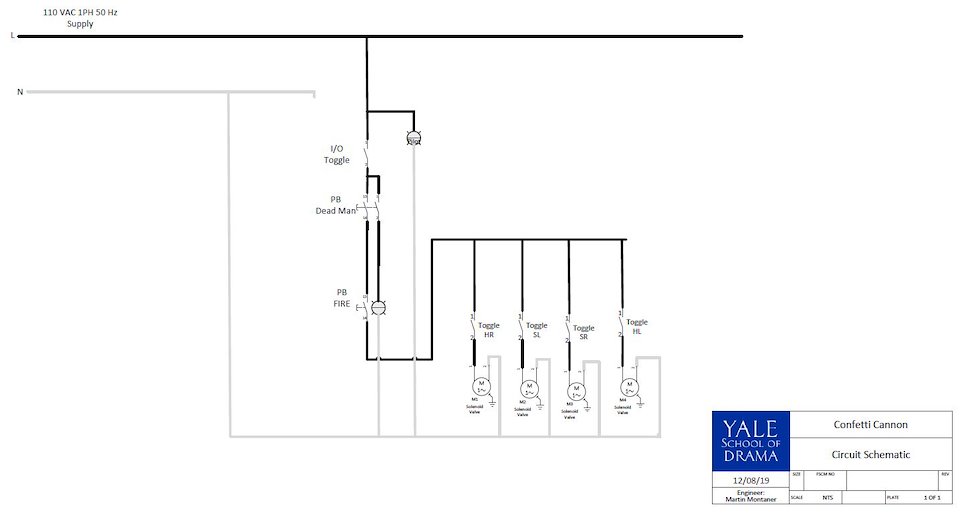

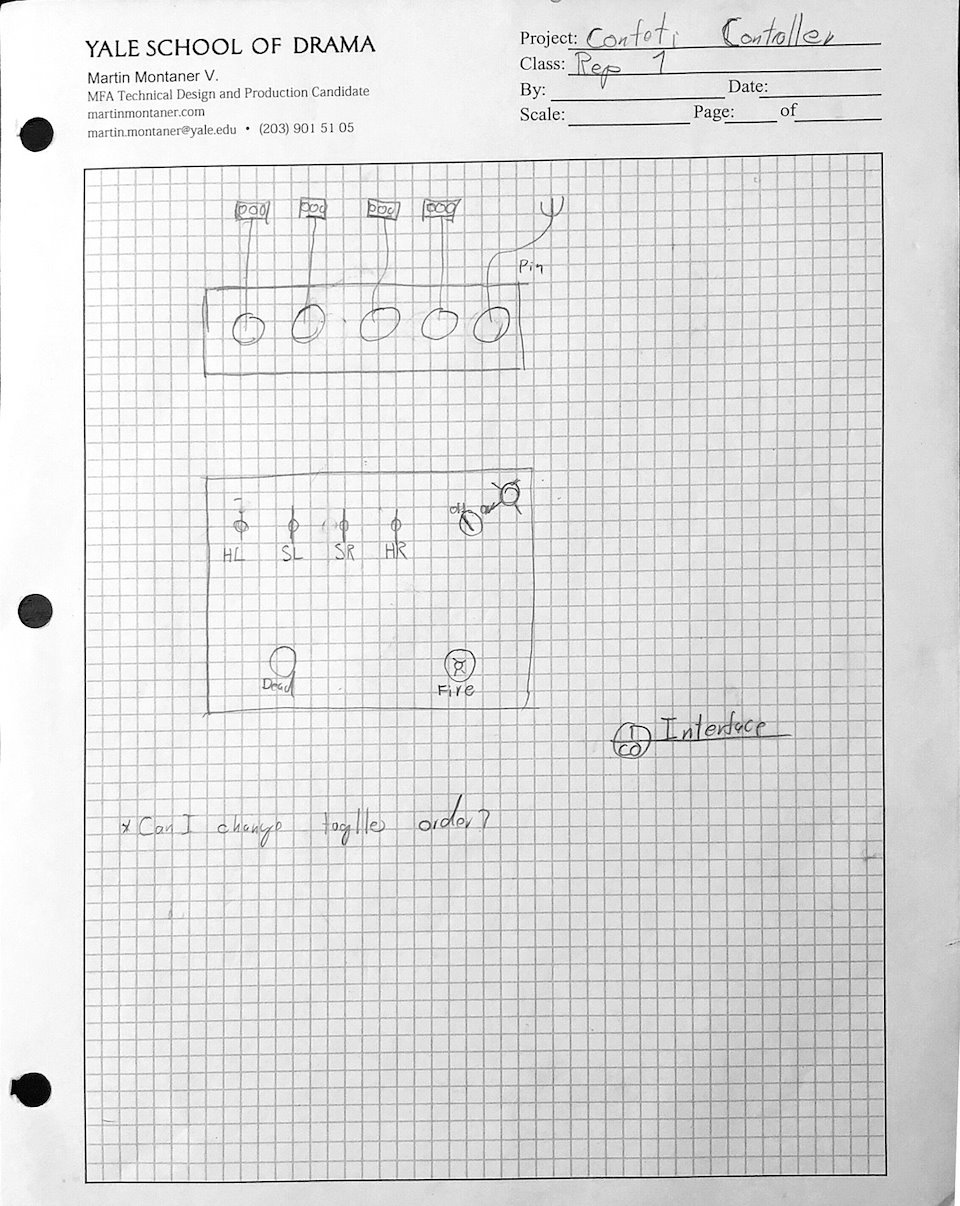

I design and build the controller inspired by the chain motor controllers. The confetti cannon user interface can energize the solenoids valves either individually or in groups. As an additional safety fixture, a dead man switch will enable the fire action only while the operator is applying pressure to the switch. A light in the fire pushbutton indicates that the system is armed and ready to be fired.

ESP:
“Girls”, la primera producción de Yale Rep en su temporada 19-20, requería una interfaz para controlar cuatro cañones de confeti ubicados en el FOH.
Diseñe el controlador inspirado en los controladores de motor de cadena. La interfaz puede energizar las válvulas solenoides, ya sea individualmente o en grupos. Para mayor seguridad, incluí un “interruptor de hombre muerto” que permite la acción de fuego solo mientras el operador aplica presión al interruptor. Una luz en el botón de disparo indica que el sistema está armado y listo para ser ejecutado.
