Affordable Snow Drum

EN

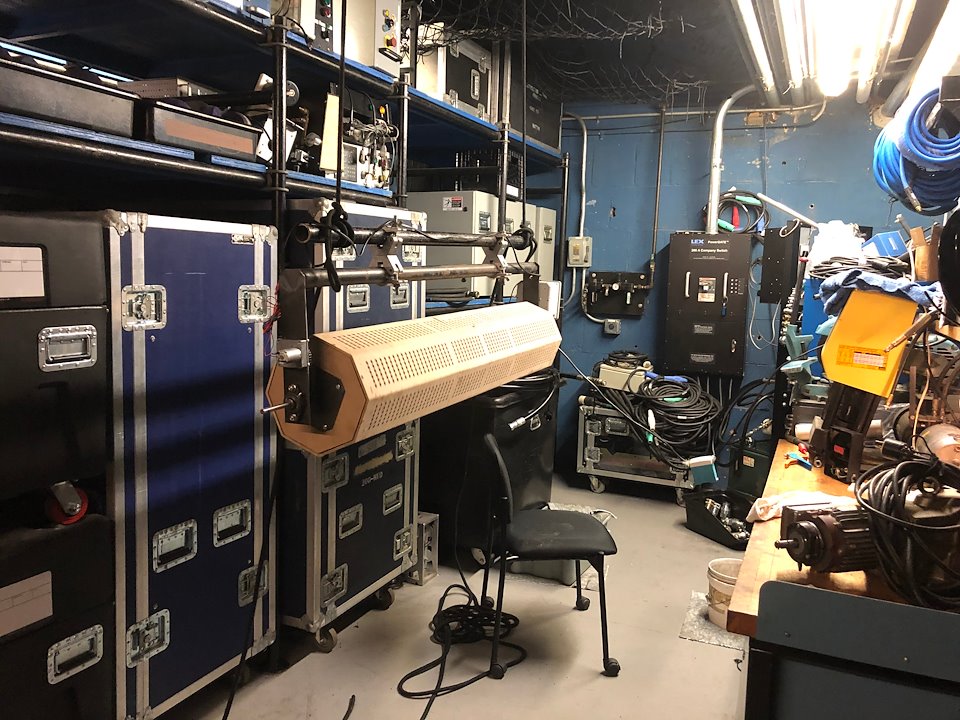

I made this Snow Drum Machine with no other purpose than learning and experimenting with different technologies than the ones commonly available from vendors. I was especially interested in automating small devices using s low-cost technology.

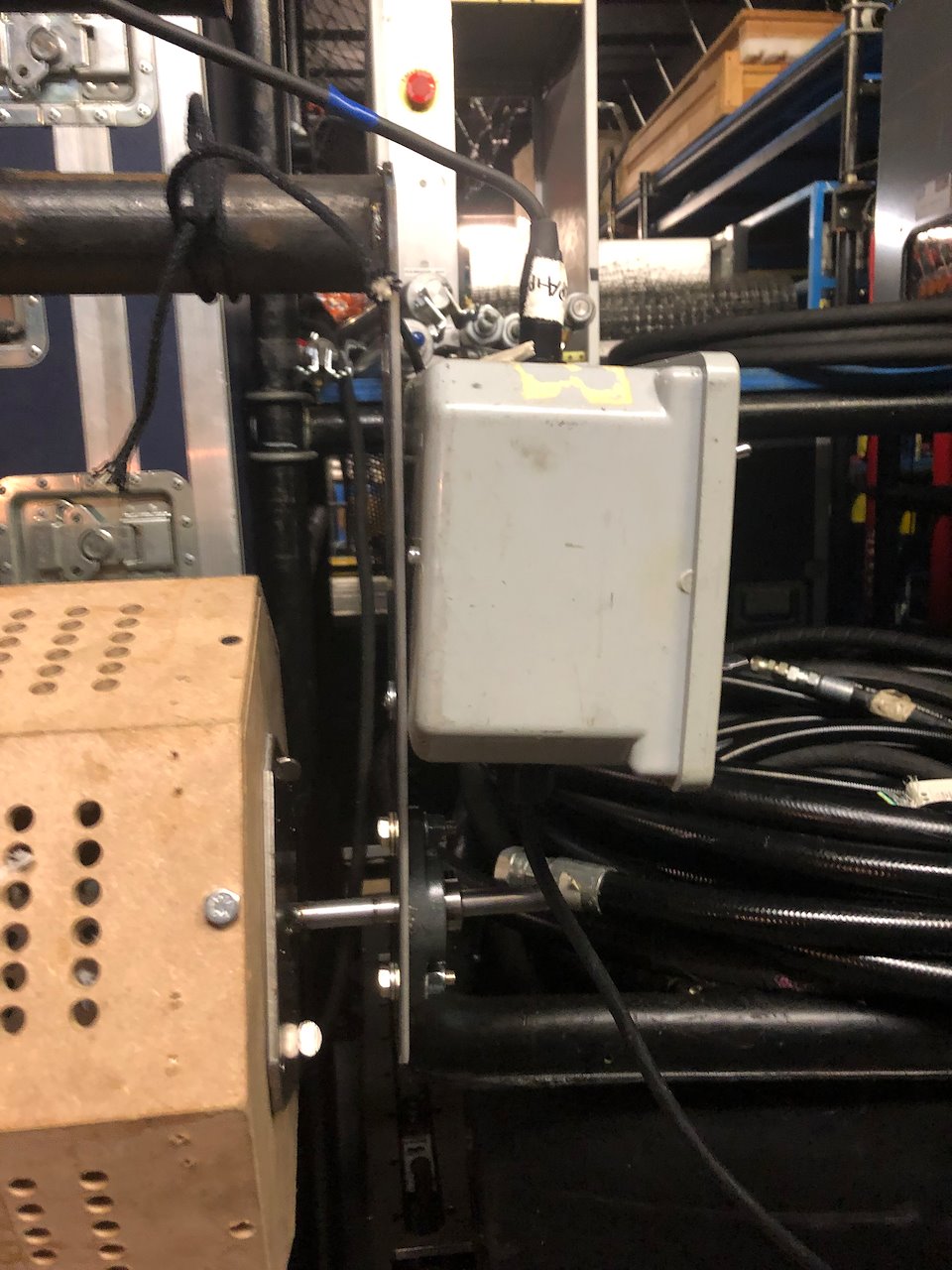

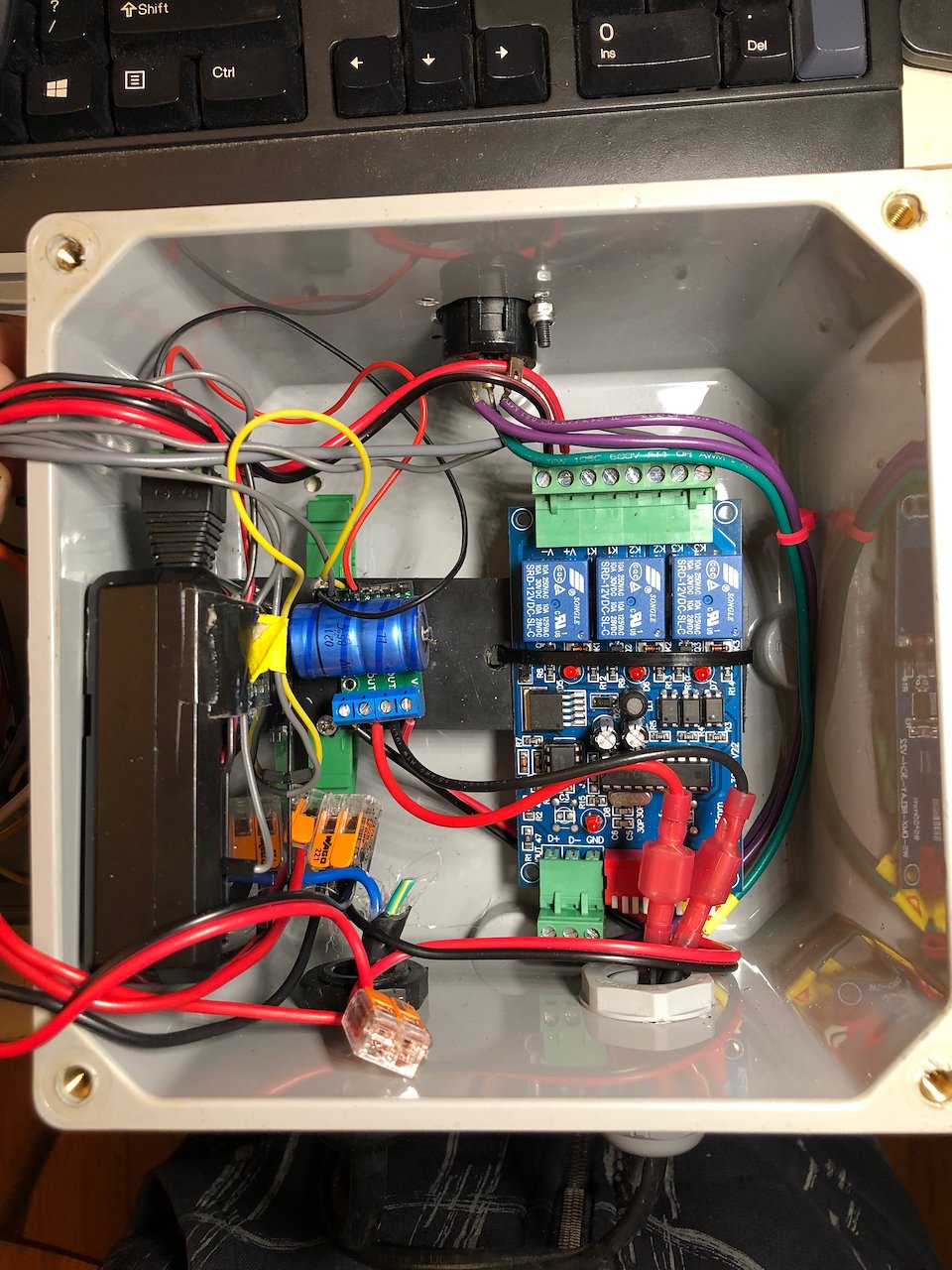

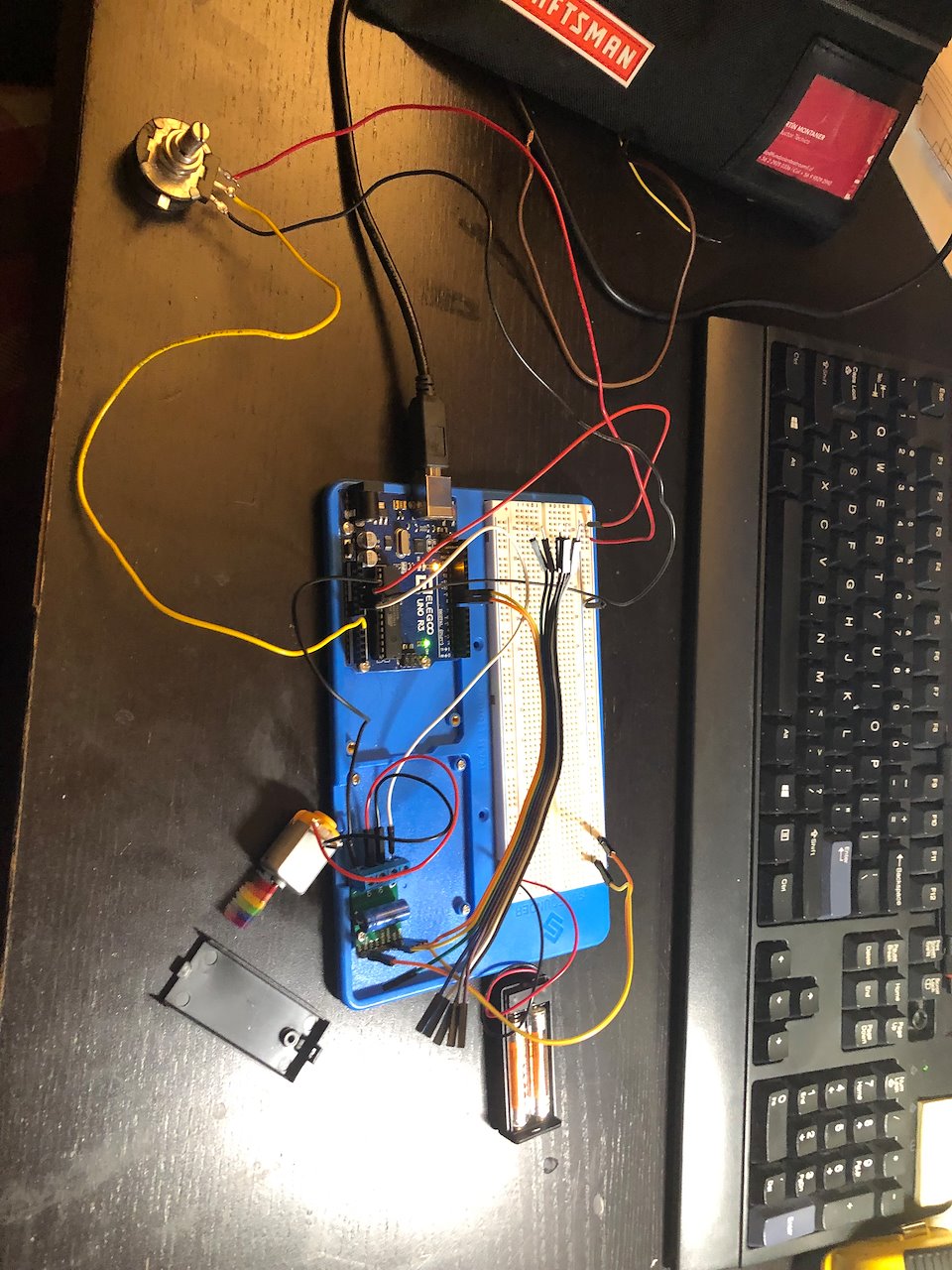

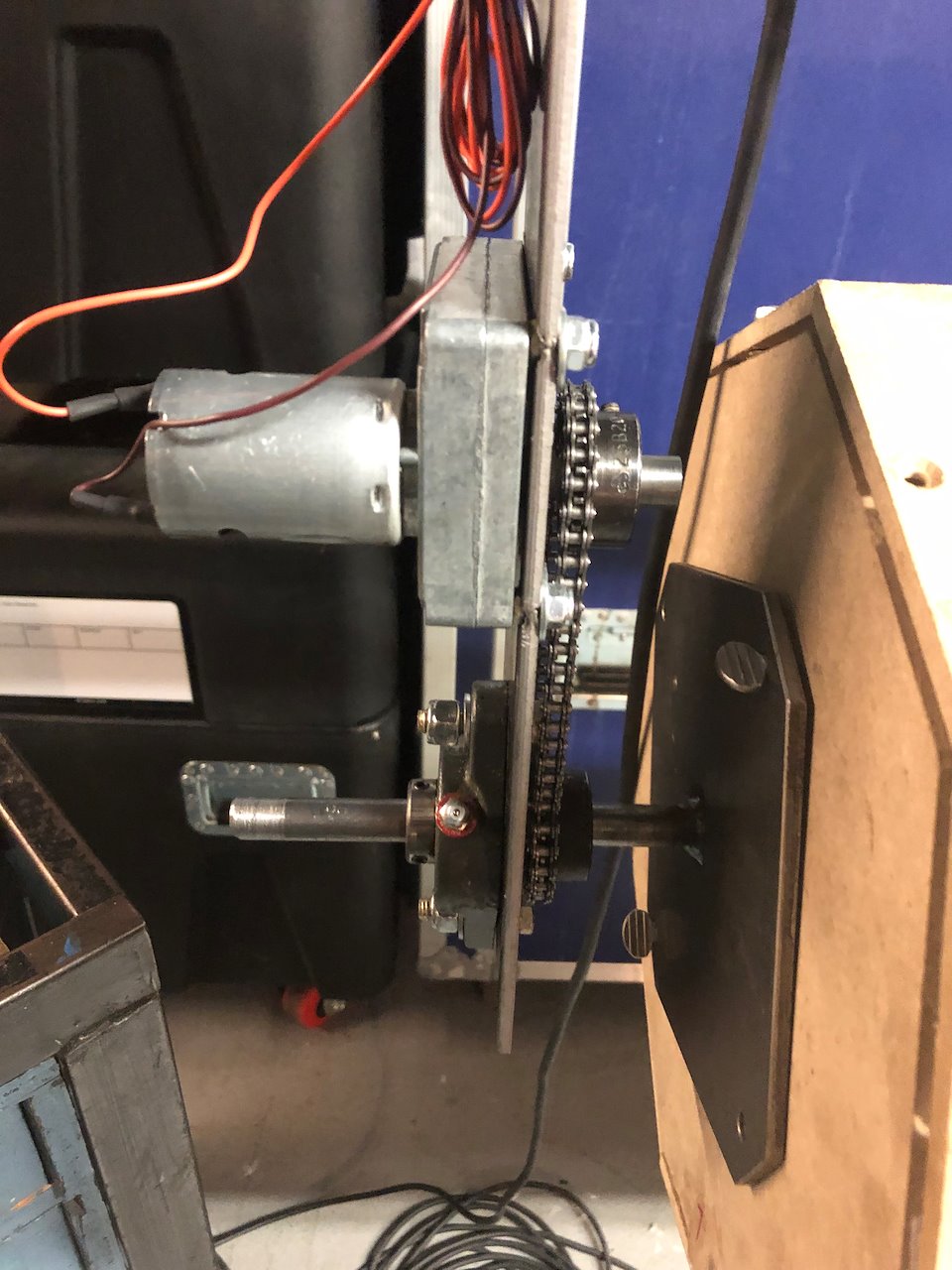

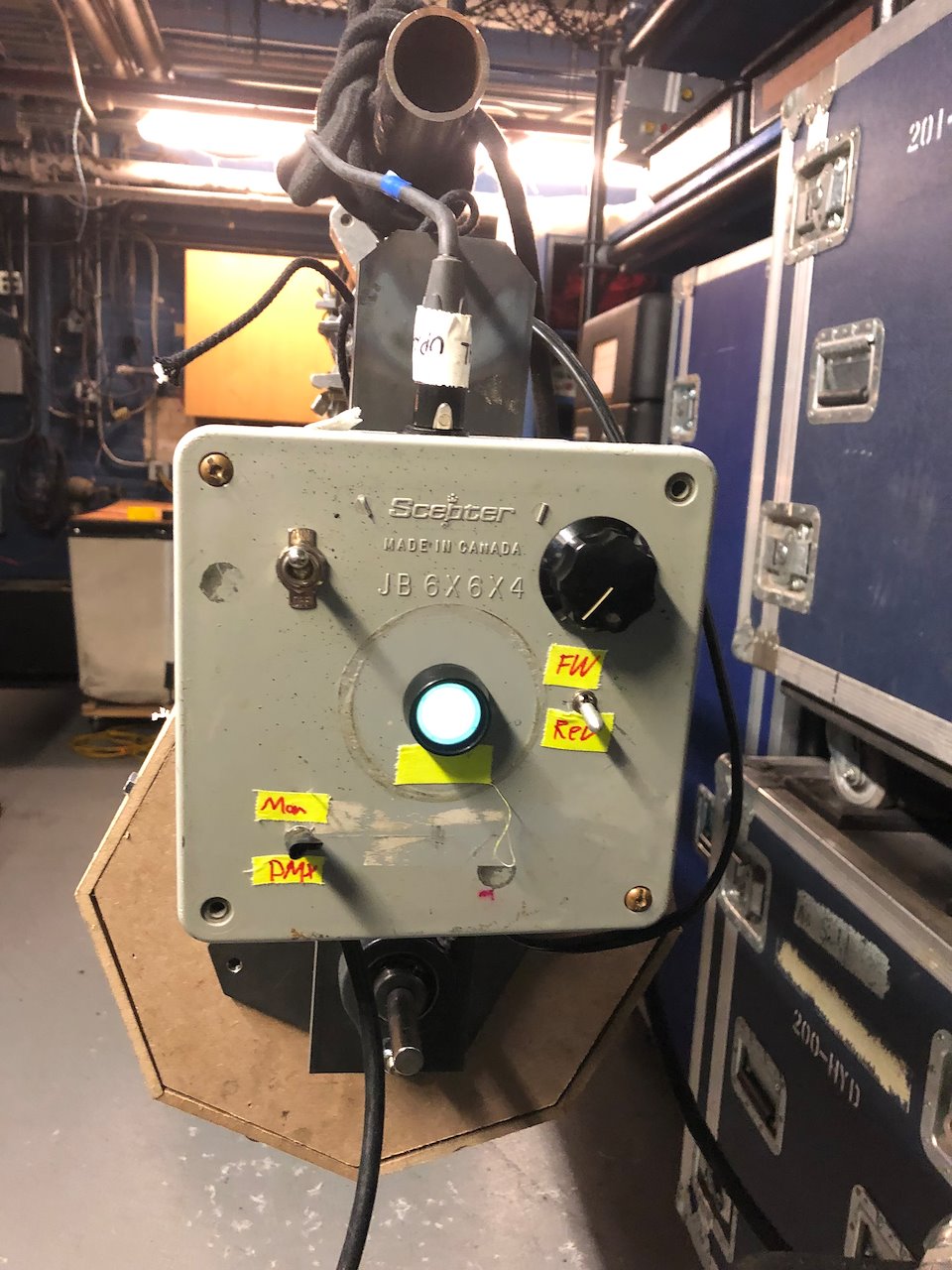

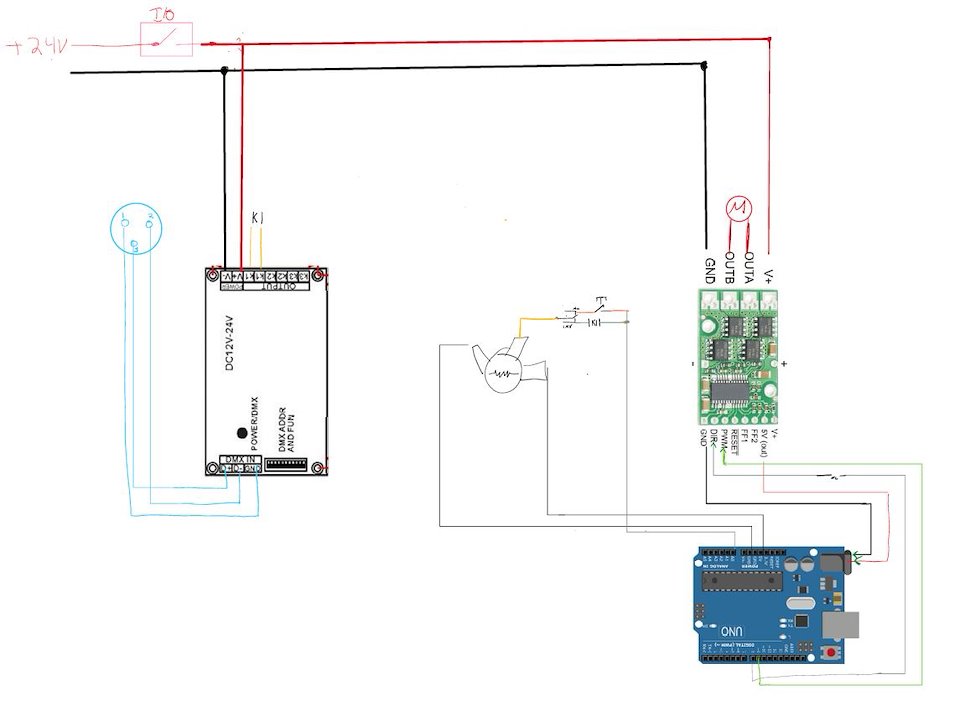

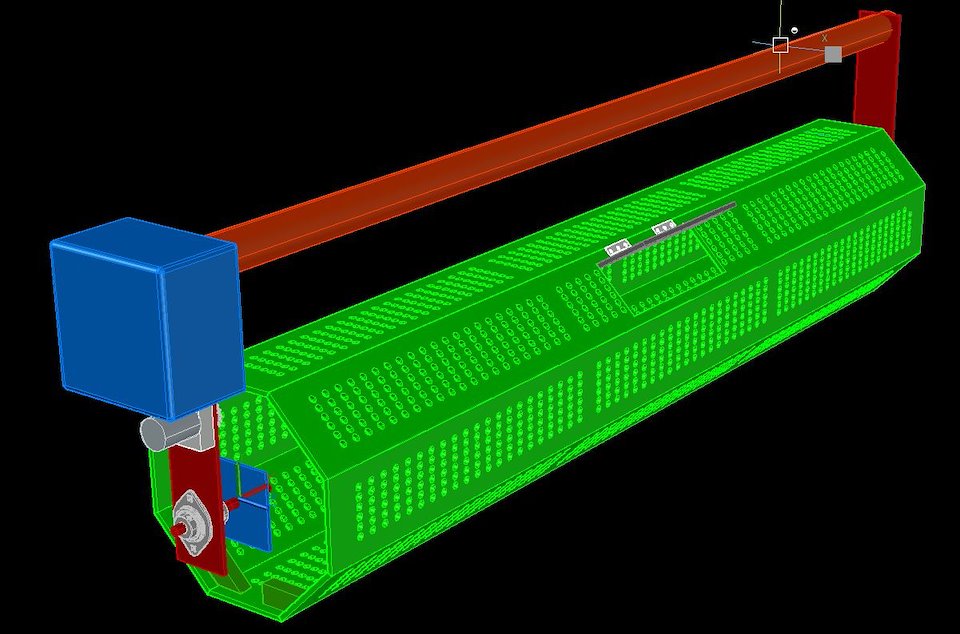

The drum on this machine is powered with a Dayton 24 VDC 50 in-lb of torque gear-motor, $50.00 at eBay. The speed and direction were controlled by an Arduino Uno and one Pololu 15 Amp high-power motor driver $55.00 in Sparkfun. Lastly, a DMX relay ($19.00 in Amazon) enabled the effect to operated from either the junction box onboard or remotely with a DMX controller.

The result of this research was a muck-up of all these components interacting togther.

ES
Hice esta máquina de nieve sin otro propósito que aprender y experimentar con tecnologías diferentes a las comúnmente disponibles para la venta. Mi interes era animar dispositivos pequeños usando alguna tecnología de bajo costo.

El tambor de esta máquina funciona con un motor de engranajes Dayton de 24 VDC con 50 inlb de torque, $ 50.00 USD en eBay. La velocidad y la dirección fueron controladas por un controlador de motor de alta potencia, Pololu 15 Amp y un Arduino Uno, ambos productos costaron 55.00 USD en Sparkfun. Por último, un relé DMX de $ 19.00 en Amazon permitió que el efecto funcionara tanto desde la caja de conexiones a-bordo o de forma remota con un controlador DMX.

El resultado de esta investigación fue una maqueta con todos estos componentes interactuando entre ellos.

Role
Technical Design / Build
For
Yale School of Drama
Date
Nov, 2019
Type
Technical Design / Build
